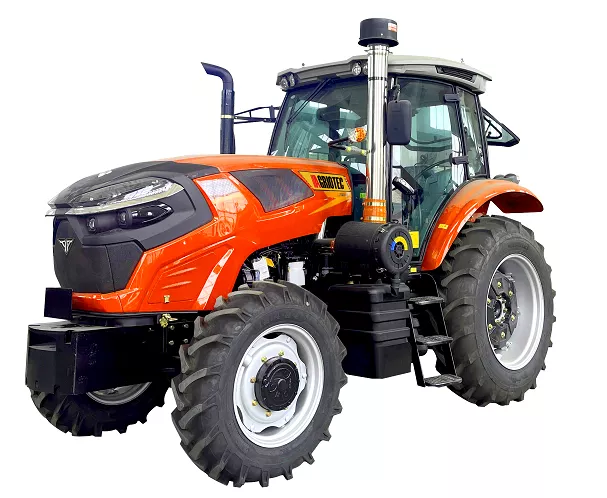

D Series Utility Tractor
● Ranging from 90HP to 150HP(66.2kw-110.3kw)
● 16F+8R Transmission
● Forced hydrualic system,position control,floating control
● Cab, Open Station, 2WD or 4WD
● Air-ride seat
| Model | Unit | 904D | 1004D | 1104D | 1204D | 1304D | 1404D | 1504D | |
| Dimensions of tractor | Type | / | Drive type (4×4) | Drive type (4×4) | Drive type (4×4) | Drive type (4×4) | |||
| Power | kW | 66.2 | 74 | 81 | 88.2 | 95.6 | 103 | 110.3 | |
| Dimension(L×W×H) | mm | 4355×2110×2940 | 4355×2110×2940 | 4355×2110×2940 | 4750×2110×2940 | ||||
| Wheel base | mm | 2385 | 2385 | 2385 | 2600 | ||||
| Min.ground clearance | mm | 410 | 410 | 410 | 410 | ||||
| Min.useage Weight | kg | 4560 | 4560 | 4560 | 4660 | ||||
| Tread | mm | Front tread:1620(1620～1970)adjustable Rear tread:1620(1620～1950)adjustable | Front tread:1620(1620～1970)adjustable Rear tread:1620(1620～1950)adjustable | Front tread:1620(1620～1970)adjustable Rear tread:1620(1620～1950)adjustable | Front tread:1620(1620～1970)adjustable Rear tread:1620(1620～1950)adjustable | ||||
| Power | Clutch | / | Dry-type,double-acting | Dry-type,double-acting | Dry-type,double-acting | Dry-type,double-acting | |||
| Engine | / | (Ⅱ)YTO 4Cylinder | (Ⅱ)YTO 4Cylinder | (Ⅱ)YTO 4Cylinder | （Ⅱ）YTO 6 Cylinder | ||||
| Rated speed | r/min | 2300 | 2300 | 2300 | 2200 | ||||
| Working part | Transmission | / | 16F+8R | 16F+8R | 16F+8R | 16F+8R | |||
| PTO Type | / | 8 Spline、Φ38、Ⅰtype | 8 Spline、Φ38、Ⅰtype | 8 Spline、Φ38、Ⅰtype | 8 Spline、Φ38、Ⅰtype | ||||
| PTO Rated power | kW | ≥56.3 | ≥63 | ≥69 | ≥75 | ≥81.3 | ≥87.6 | ≥93.8 | |
| PTO Speed | r/min | 760/1000 | 760/1000 | 760/1000 | 760/1000 | ||||
| Hydrualic system | Three point linkage | / | Rear,three-point suspension,cat 2 | Rear,three-point suspension,cat 2 | Rear,three-point suspension,cat 2 | Rear,three-point suspension,cat 2 | |||
| Hydrualic output | / | 3-Way valve | 3-Way valve | 3-Way valve | 3-Way valve | ||||
| Hydrualic adjustment type | / | Forced hydrualic system,position control,floating control | Forced hydrualic system,position control,floating control | Forced hydrualic system,position control,floating control | Forced hydrualic system,position control,floating control | ||||
| Max.lifting force at frame center | kN | ≥15.9 | ≥20.2 | ≥20.7 | ≥21.2 | ≥23.0 | ≥24.8 | ≥26.5 | |
| Tyre | Tyre （Front/ Rear） | / | 12.4-24/16.9-34 | 12.4-24/16.9-34 | 12.4-24/16.9-34 | 12.4-24/16.9-34 | |||
| Optional tyre (Ⅰ) | / | 13.6-24/16.9-38 | 13.6-24/16.9-38 | 13.6-24/16.9-38 | 13.6-24/16.9-38 | ||||
| Other options | Cabin | / | Fan cabin , Warm cabin，Air cabin | Fan cabin , Warm cabin，Air cabin | Fan cabin , Warm cabin，Air cabin | Fan cabin , Warm cabin，Air cabin | |||
