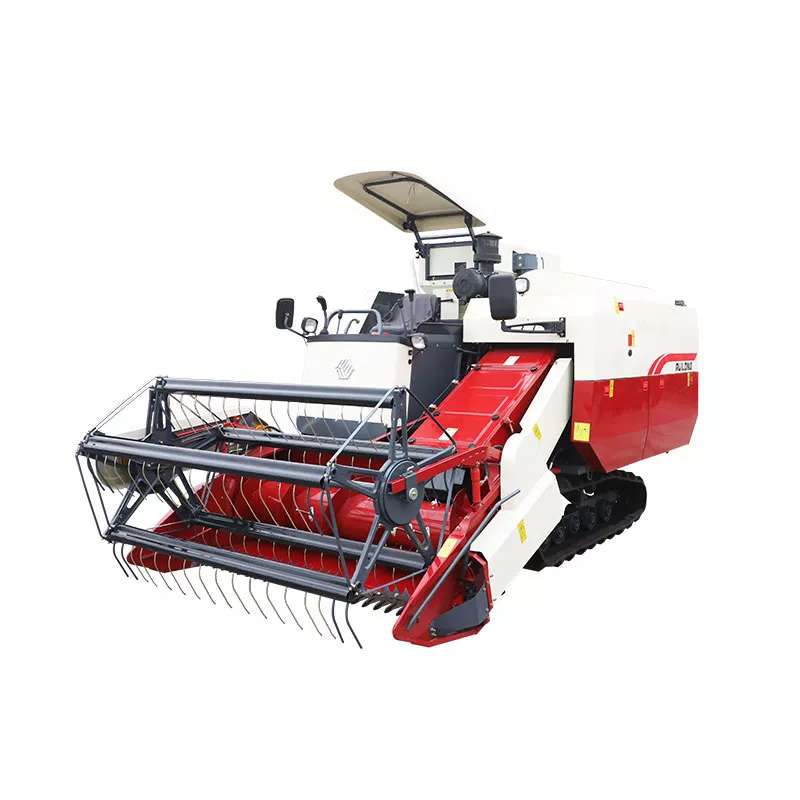

4R Series Combine Harvester

1.Use 88HP turbo engine with high power and low fuel consumption. 2.Cutting Width 2.0m for different areas of fields. 3.Reel uses spring type finger and PVC bush for better performance. 4.Use 45cc HST for working more smoothly. 5.Minimun ground clearance 320mm and rubber track 500*90*51 ensures machine work in deep mud field.

Model

4LZ-4.0E(samll grain tank)

Type

Self-propelled Whole-feeding

Dimension    (Operation)

Length(mm)

4960

Width(mm)

2890

Height(mm)

2700

Weight(kg)

3100

Engine

Model

Changchai 4L88

Power(HP)

88

RPM(r/min)

2600

Fuel Capacity(L)

130

Gearbox

Hydraulic Gearbox Box ZKB85

HST

45cc

Chassis

Track(mm)

500*90*51

Track Center(mm)

1150

Ground Clearance(mm)

320

Harvesting

Cutting Width(mm)

2000

Feeding Capacity (kg/s)

4.0

Cutting Bar Lift

Hydraulic Control

Threshing

Type

Axial Flow Type with Beat Bars

Threshing Cylinder (mm)

620*2000

Filtrate Type

Vibrating Sieves+ Centrifugal Fan

Discharging

Grain Tank Type

Manual type

Grain Tank

0.3m³

Work efficiency(acre/h)

0.37-0.66

Crops

Rice, Wheat, Rapeseed, Soybean
