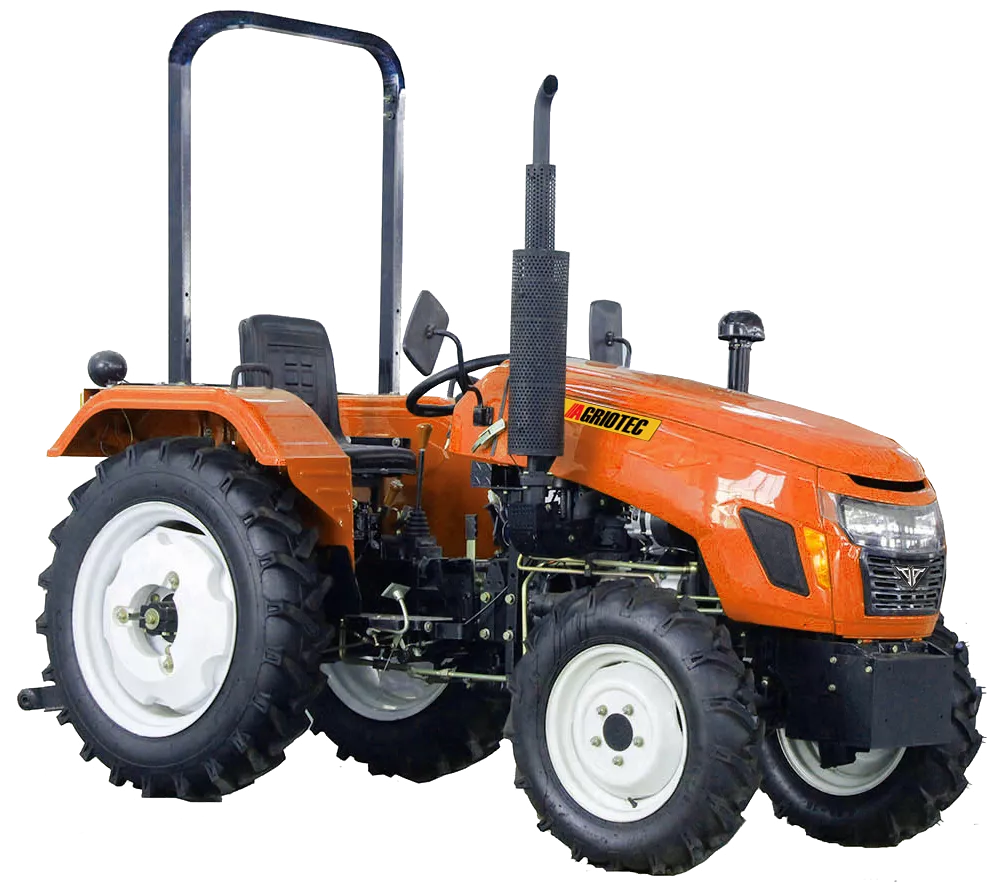

Y Series Utility Tractor

Ranging from 25HP to 45HP(18.4kw-33.1kw)

Optional 8F+2R or 8F+8R Transmission

Forced hydrualic system,position control,floating control for optional

Open Station, 2WD or 4WD

Budget tractor for family farm or handle chores around property

Model
   Unit
254Y304Y354Y404Y454Y
Dimensions of tractorType/四轮驱动(4×4)
   Drive type (4×4)
PowerkW18.422.125.829.433.1
Dimension(L×W×H)mm3000×1200×20303100×1200×2030
Wheel basemm16501750
Min.ground clearancemm300
Min.Weightkg12501300
TreadmmFront tread:1000(1000~1300)adjustable
   Rear tread:1000(1000~1300)adjustable
Power   Clutch/
   Dry-type,single-acting
Engine/
   (Ⅱ)YANGDONG 4 Cylinder(25、30HP 3 Cylinder)
Rated speedr/min2400
  Working partGear/8F+2R(Option8F+8R)
PTO Type/
   6 Spline、Φ35、Ⅰtype
PTO Rated powerkW≥15.7≥18.8≥22.0≥25.0≥28.2
PTO Speedr/min760(可选540/720)(Option540/720)
Hydrualic system   Three point linkage/
   Rear,three-point suspension,cat 1
Hydrualic output/
   Simple output
Hydrualic adjustment type/
   Optional:forced hydrual system,position control,floating control
Max.lifting force at frame centerkN≥4.2≥5.0≥5.9≥6.7≥7.5
TyreTyre (Front/ Rear)/6.50-16/9.50-24
Optional tyre (Ⅰ)
7.50-16/11.2-24
   Other optionsAir brake/Optional
Outer   Parts/Sunroof,Safty ROP
